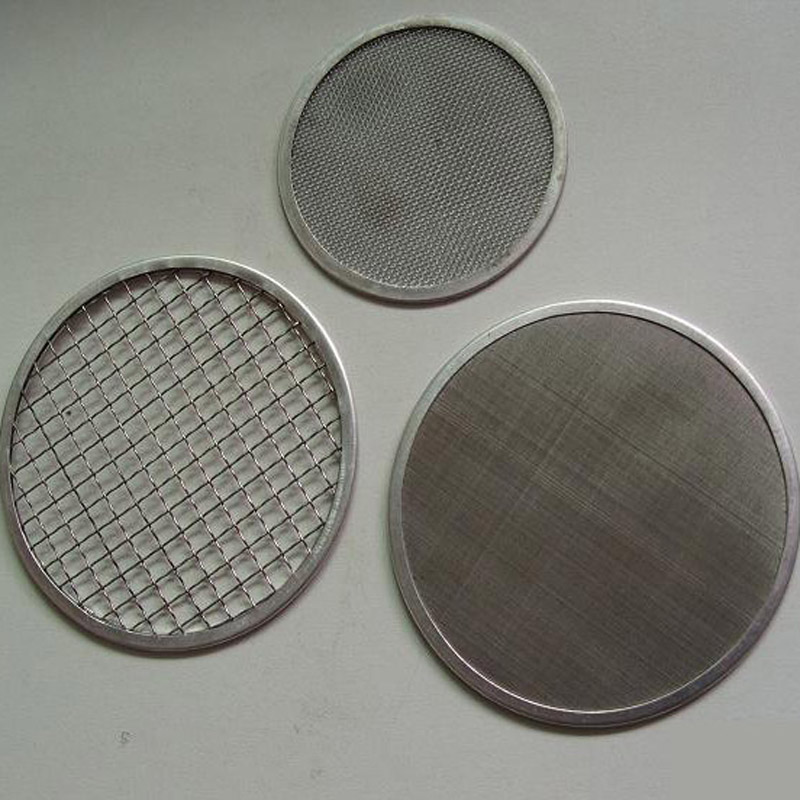

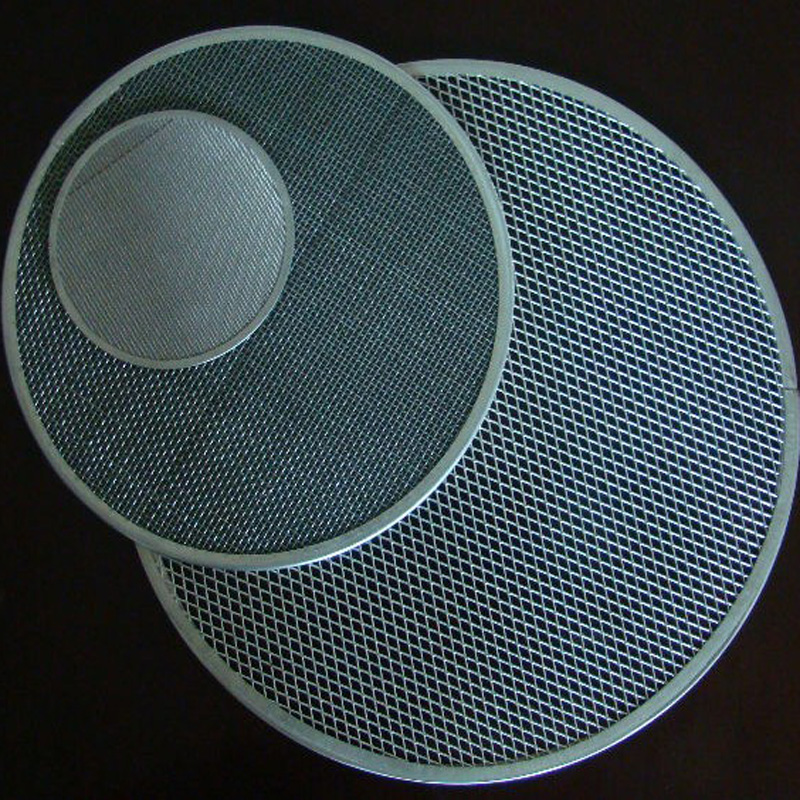

We can supply filter discs made of metal wire mesh in single layer or multi-layer. Double layer or three layer,Can be classified into round, square, kidney shape, oval and other special shapes according to the outside designs.
Stainless Steel Small Filter Pieces
Material:SUS302,304,304L,316,316L
Speculation:1-635mesh/inch
Standard widths 1020mm und 1220mm exstock or at short notice as a production run. Other widths
available on request.
Standard roll lengths 15 m und 30 m dependent upon specification. Sections cut to size are available
in all sizes and shapes.
To individual customer specifications in other materials
Weaving and characteristics: Perforated by means of moulds of such shapes as round,square,
rectangle,oval,hat etc.
Uses: it is mainly used in filtering in rubber,pharmacy,brewery,beverage ,in the fiber industry as nozzle etc.
Stainless steel wire can be substituted by copper, galvanized iron wire polyamide fiber or F46 wire if need.
Specification:
Mesh | Wire Dia(mm) | Opening(mm) | Material(AISI) |
2mesh*2mesh | 1.8 | 10.9 | 304 or 316 |
3mesh*3mesh | 1.5 | 6.96 | 304 or 316 |
4mesh*4mesh | 1 | 5.35 | 304 or 316 |
7mesh*7mesh | 1 | 2.63 | 304 or 316 |
10mesh*10mesh | 0.6 | 1.94 | 304 or 316 |
12mesh*12mesh | 0.5 | 1.62 | 304 or 316 |
16mesh*16mesh | 0.4 | 1.19 | 304 or 316 |
16mesh*16mesh | 0.35 | 1.24 | 304 or 316 |
18mesh*18mesh | 0.35 | 1.06 | 304 or 316 |
20mesh*20mesh | 0.4 | 0.87 | 304 or 316 |
24mesh*24mesh | 0.26 | 0.8 | 304 or 316 |
30mesh*30mesh | 0.3 | 0.55 | 304 or 316 |
35mesh*35mesh | 0.17 | 0.56 | 304 or 316 |
40mesh*40mesh | 0.23 | 0.4 | 304 or 316 |
application:

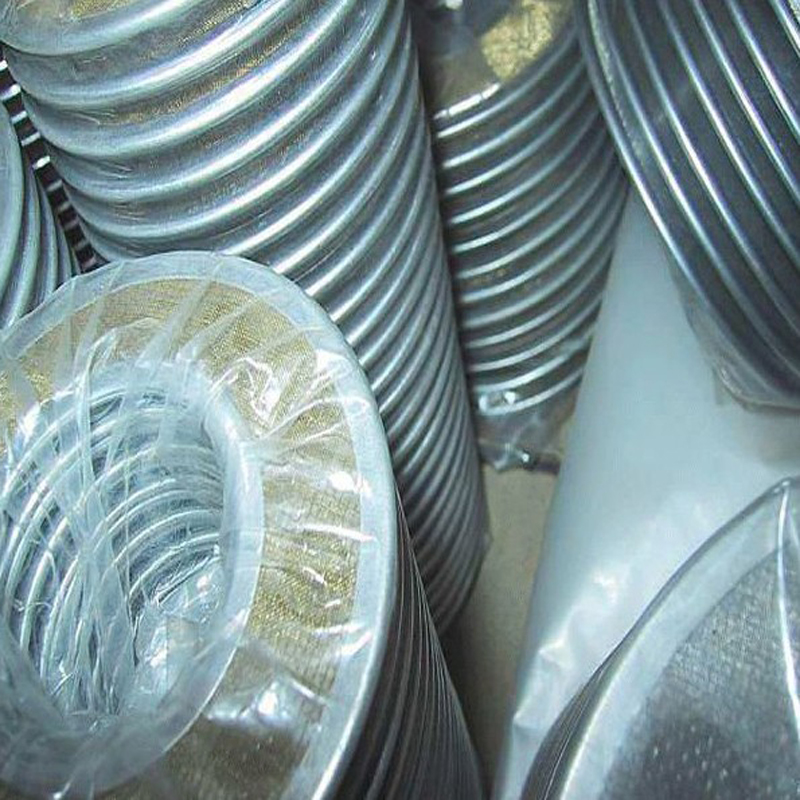

Mainly for the filtration of air, the medium cleaning and flow control of lubrication oil, fuel oil.
Hydraulic pressure and air pressure system. Any outline size and filtration rating available as the
requirements of the customer.
Various kinds of filters and filtration equipment available, such as air filter, water filter, oil filter,
carbon filter, acid filter, oil purifier, filter bag, bag filter
